Nissan D21 LCA Triangulation Kit
The wait is finally over!! Our V2 triangulation kit features DOM tube arms, adjustable heim joints for caster adjustment, as well as an optional install kit to make your life much easier!
This kit takes place when removing the factory tension rods when adding air bags, hydraulics, or coil overs.
What’s included:
2 triangulation arms with gussets and adjustable heim joints

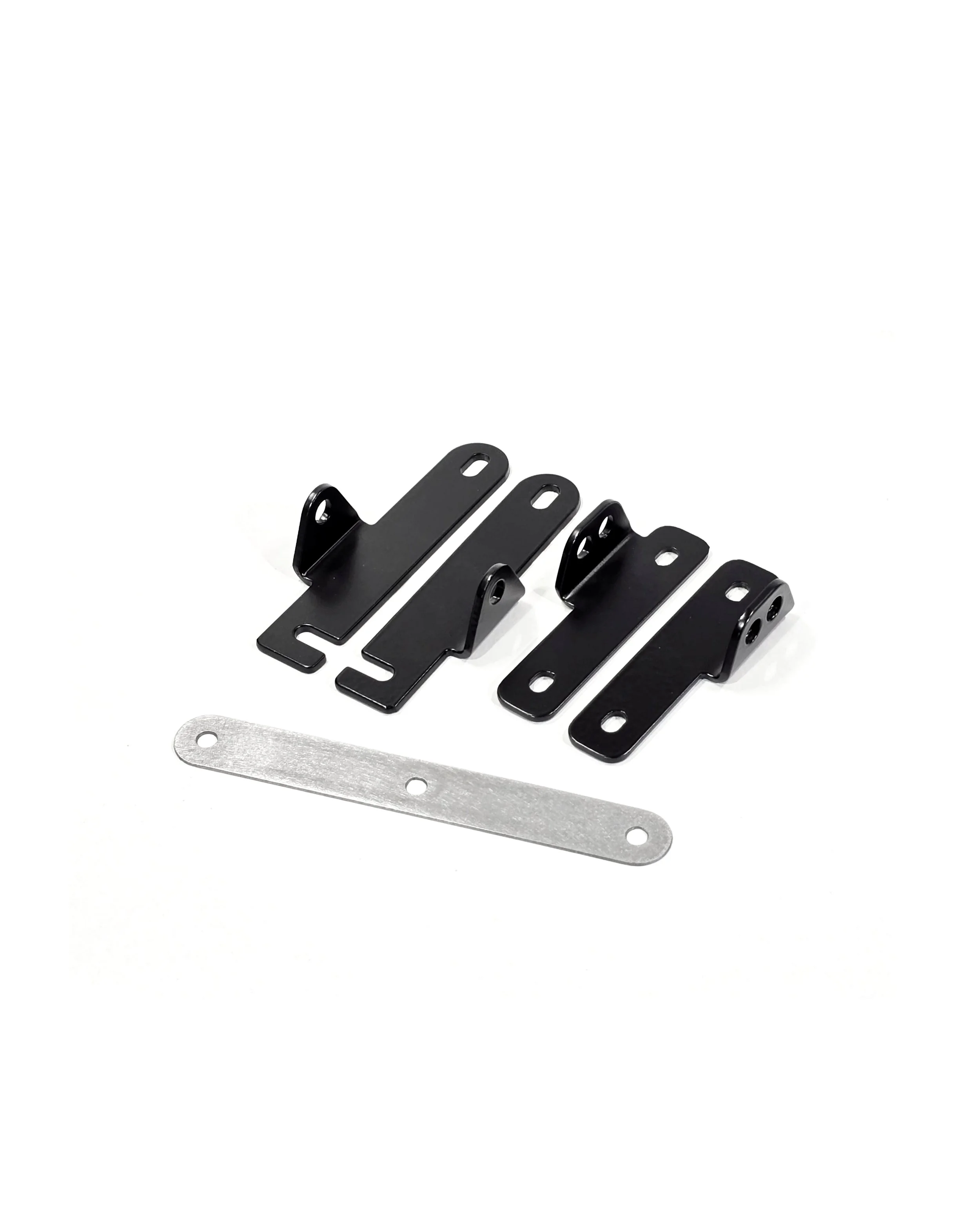

2 frame brackets to mount triangulation arms
Grade 8 hardware
Optional shock mounting kit includes - upper shock towers, M12-1.75 lower shock bungs, M12-1.75 hardware
Optional Installation kit includes - 5/8” all thread, X4 5/8” Nuts, Crush Sleeve
Features:
CNC Plasma cut, CNC Bent
3/16” P+O steel brackets and tabs
1.25” DOM Tube ( .120” wall )
Vehicle Fit:
Nissan D21 / Hardbody 2wd 1986.5 - 1997
!!! OFFROAD USE ONLY, INSTALL AT YOUR OWN RISK !!!
RohdeFab recommends this kit to be installed by an experienced fabricator.
